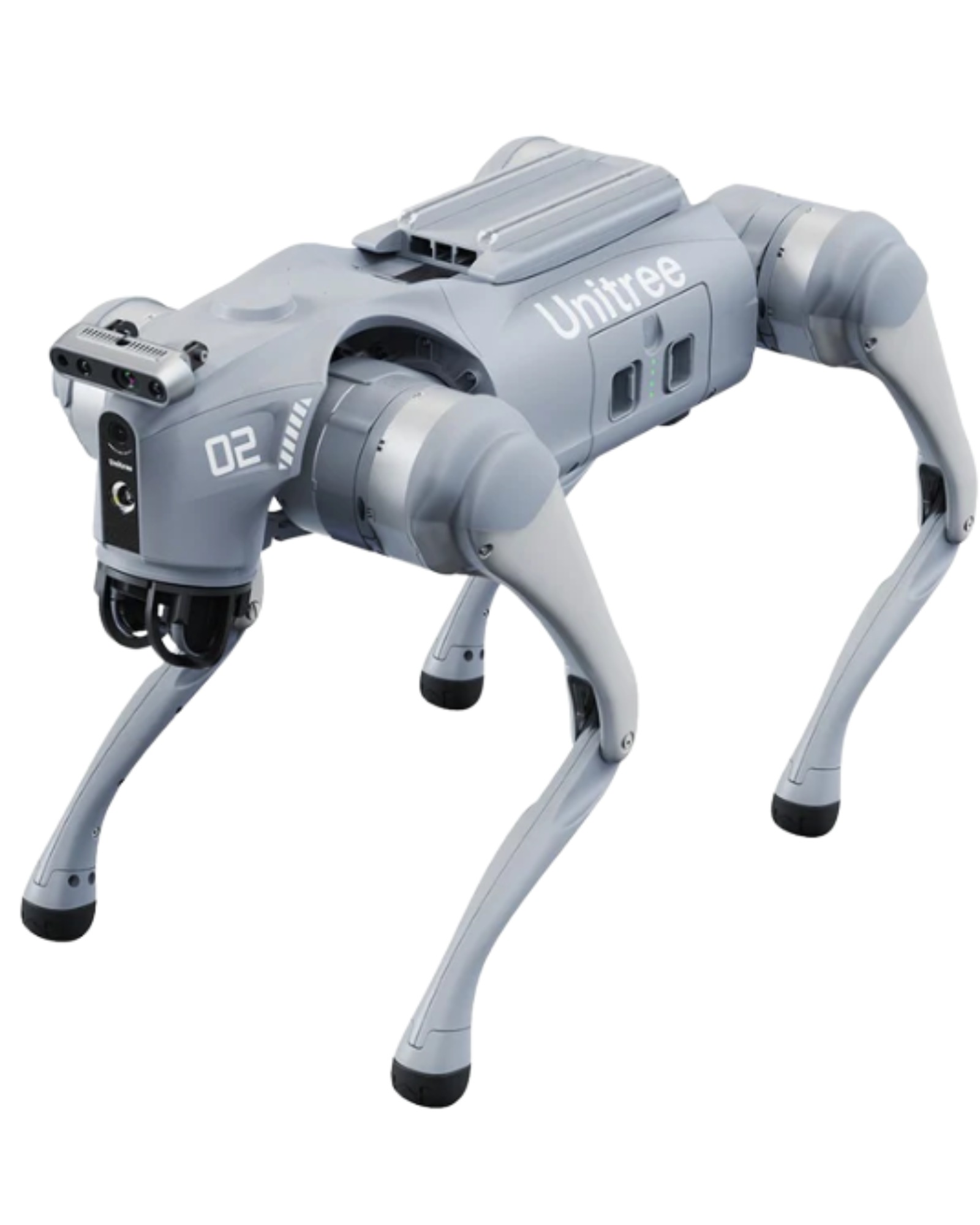

Unitree Go2 Edu Plus

Unitree Go2 Edu Plus is available through Aerial Visual Technologies as part of our robotics catalog. The Go2 Edu Plus is a next-generation quadruped platform for home, education, inspection, demonstrations, and professional robotics programs. This robotics platform comes with:

• Dimension of standing: 70x31x40cm
• Dimension of crouching: 76x31x20cm
• Weight (with battery): About 15kg
• Material: Aluminum alloy + High strength engineering plastic
• Voltage: 28V~33.6V
• Peaking capacity: About 3000W
• Payload: ≈8kg MAX ~ 12kg
• Speed: 0 ~ 3.7m/s (MAX ~ 5m/s)
• Max Climb Drop Height: About 16cm
• Max Climb Angle: 40°
• Basic Computing Power: 8-core High-performance CPU
• Max Torque[1]: About 45N.m
• Aluminum knee joint motor: 12 set
• Range of Motion: body：-48~48°; thigh：-200°~90°; shank：-156°~-48°
• Intra-joint circuit (knee): Yes
• Joint Heat Pipe Cooler: Yes
• Super-wide-angle 3D LIDAR: Yes
• Wireless Vector Positioning Tracking Module: Yes
• HD Wide-angle Camera: Yes
• Foot-end force sensor: Yes
• Basic Action: Yes
• Auto-scaling strap: No
• Upgraded Intelligent OTA: Yes
• RTT 2.0 Pictures Transaction: Yes
• Graphical programmer: Yes
• Front lamp: Yes
• WiFI6 with Dual-band: Yes
• Bluetooth 5.2/4.2/2.1: Yes
• 4G module: Yes
• Voice Function[2]: Yes
• ISS 2.0 Intelligent side-follow system: Yes
• Intelligent detection and avoidance: Yes
• Charging Pile Compatibility: Yes
• Secondary development[3]: Yes
• Manual controller: Yes
• High computing power module: NVIDIA Jetson Orin (optional) (40-100Topscomputing power)
• Smart battery: long endurance (15000mAh)
• Battery life: About 2-4h
• Charger: fast charge (33.6V 9A)
• Warranty period[4]: 12 months

Need help choosing the right configuration? Contact AVT for availability, package pricing, deployment support, and compatibility guidance.
